Advantages of IT2705 DC Power Analyzer in Low-Power Consumption Testing
In the evolution of electronic products, users consistently expect longer battery life. Yet, while functions continue to increase, product sizes shrink—creating a constant “bottleneck” that keeps battery capacity in a state of delicate balance. As a result, endurance has become a key competitive factor for consumer electronics, medical devices, and communication modules.
From everyday smartwatches and smart home appliances, to life-critical implantable medical devices and portable monitors, and even to communication modules that enable the IoT, all require rigorous low-power testing and validation. Engineers must accurately measure currents across the full dynamic range—from deep sleep current to peak operating current—and precisely capture transient current pulses.
This demands a test system with not only exceptional accuracy and dynamic performance, but also seamless range switching and high-speed sampling. Only then can it capture both subtle leakage currents and the critical peak loads that may compromise the entire battery budget.

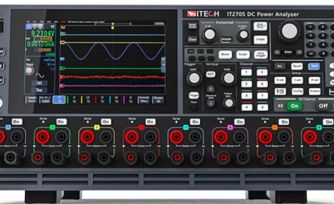

IT2705 DC Power Analyzer + IT27814 SMU Module
-System-Level Testing Solution Made Test Simple
♦ Ultra-High Resolution: Up to 6 µV / 0.1 nA, far exceeding standard power supplies, ideal for ultra-small parameter measurements.
♦ High-Speed Sampling: 200 kHz oscilloscope sampling with a minimum data logging interval of 20 µs.
♦ Seamless Current Range Switching: Automatic switching among 1 mA / 100 mA / 3 A ranges ensures accurate capture from sleep to operating current without delay or data loss (10 µA range selectable manually).
♦ Battery Simulation: Precisely emulates terminal voltage, SoC variation, and internal resistance of portable devices under long-term use, and supports reverse validation of battery life. Advanced features available via optional BSS2000 battery simulation software.
♦ Integrated Power Consumption Analysis: Upper-computer software provides clear, intuitive insights into overall performance.

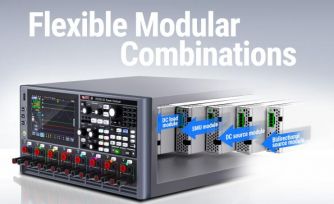

♦ Flexible Modular System: IT2705 analyzer supports up to 8 channels with optional modules including DC source, bidirectional DC source, and regenerative DC load, enabling maximum system flexibility.
Here is an example of the IT2700 DC Power Analyzer testing a smart lock.
