Against this backdrop, the Battery Backup Unit (BBU) has become an essential component in server power architectures. Rather than providing long-duration backup power, a BBU is designed to rapidly switch output when a primary power failure occurs, supplying short-term power to support data storage, system state preservation, and safe shutdown procedures. Today, BBUs have evolved from traditional backup batteries into critical backup power subsystems for AI data centers.

From Backup Power to Comprehensive System Reliability Verification

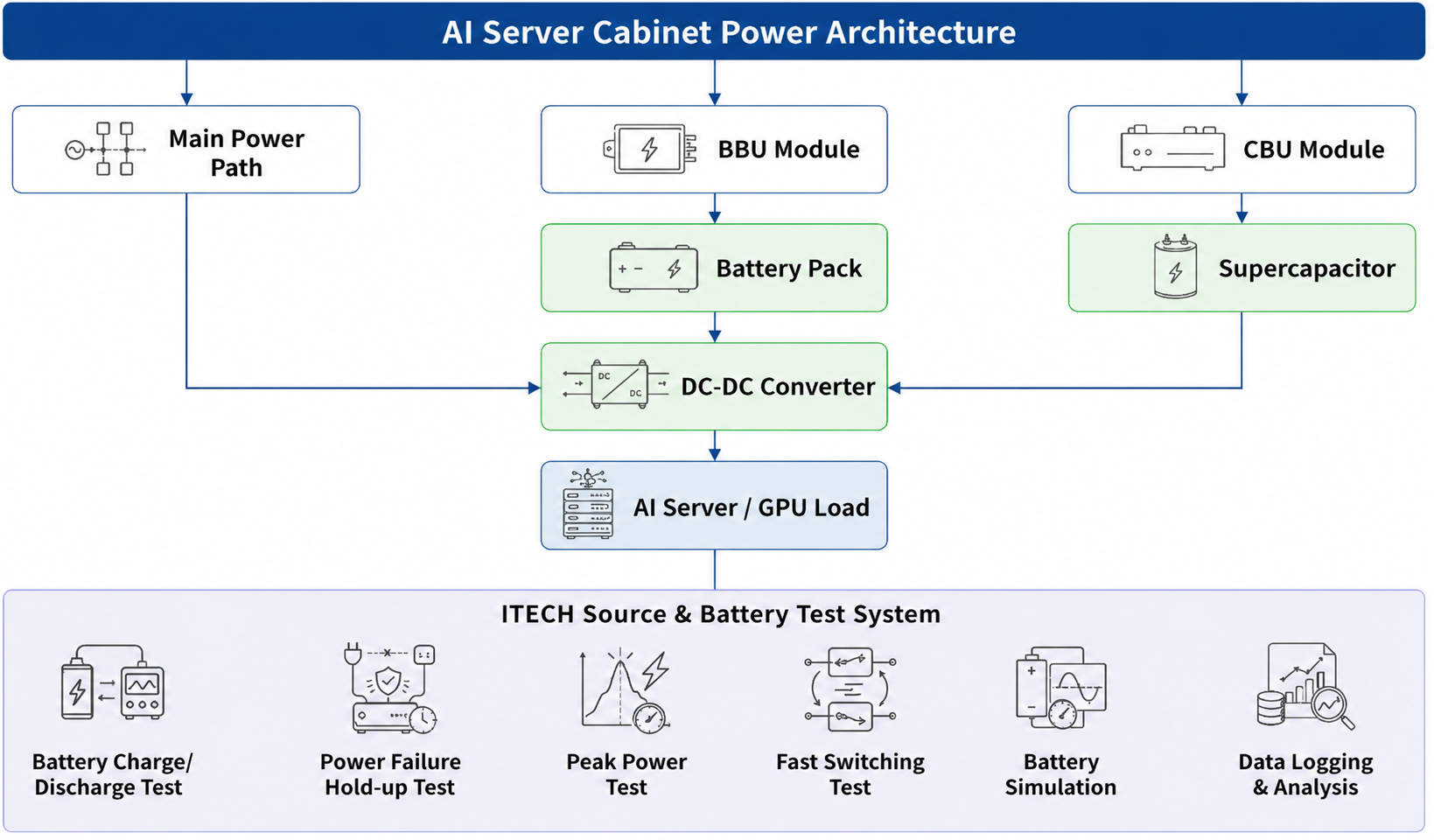

A typical BBU system consists of a battery pack, a Battery Management System (BMS), and a bidirectional DC-DC power module. The bidirectional DC-DC module serves as the core energy conversion stage:

• During normal operation, it safely charges the battery pack.
• In the event of a primary power failure, it rapidly converts stored battery energy into a regulated output voltage required by the server.

Current BBU solutions support both conventional 48V low-voltage architectures and emerging 800V high-voltage power platforms, enabling design validation across different server power infrastructures.

As a result, BBU testing cannot be limited to basic parameters such as battery capacity and charge/discharge functionality. Testing must closely replicate real operating conditions and comprehensively verify four key performance areas:

• Switching response time
• Peak load handling capability
• Output stability
• Charge/discharge cycling performance
•


Full Scenario Coverage: ITECH Integrated BBU Testing Solution

ITECH Full-Process BBU Testing Solutions for R&D, Prototype Validation, and Mass Production

To meet the full-process requirements of BBU development, prototype verification, and mass production testing, ITECH has developed a comprehensive solution that integrates module testing, battery testing, and production line EOL (End-of-Line) testing, fully addressing verification needs at different stages.

For bidirectional DC-DC power module testing, the IT6600C series bidirectional regenerative DC power supply is recommended, used in combination with IT8100A/E or IT8900G/L high-speed, high-power DC electronic loads. This setup enables conventional tests such as module charge/discharge efficiency, power stability, startup characteristics, and dynamic response. The solution also supports simulation of instantaneous high-power discharge scenarios, accurately reproducing real-world conditions when the BBU takes over during a primary power failure. At the same time, it can interface with the BMS to analyze operational data and validate the cooperative performance of the power module, battery, and management system.

For battery cell testing, the ITS5300 Battery Test System provides full support for standard charge/discharge, endurance, capacity, functional testing, and long-term reliability trials, meeting laboratory R&D and reliability assessment requirements.

Cost Reduction and Efficiency: Supporting Both R&D Verification and Mass Production

A core advantage of ITECH’s testing solution is its ability to build a simulation platform closely replicating real-world operating conditions:

• R&D Stage: Using battery simulation, SOC scenario replication, cycling tests, and long-term data acquisition, rapid reliability assessment of the solution can be performed.
• Function Verification Stage: The full BBU system can be evaluated against key metrics including backup duration, fast switching between primary and backup power, peak power handling, and dynamic load response.
• Mass Production Stage: With automated testing software, fully automated functional test systems and production line EOL stations can be established, standardizing test procedures, improving efficiency, and ensuring consistent product quality.

Future-Ready Design: Adapting to Next-Generation Server Power Architectures

As single-server power consumption continues to rise, industry power architectures are evolving toward high-power-density, high-efficiency, and high-reliability designs. Accordingly, BBU testing is transitioning from single-parameter checks to scenario-based, system-level, and automated comprehensive verification.

Leveraging its expertise in DC power supplies, electronic loads, battery testing, and automated measurement & control, ITECH provides full-chain capabilities in power sourcing, load simulation, battery emulation, and automated testing, helping enterprises complete full-lifecycle BBU verification and continuously enhance the stability and core competitiveness of AI server backup power systems.
